Descriptif

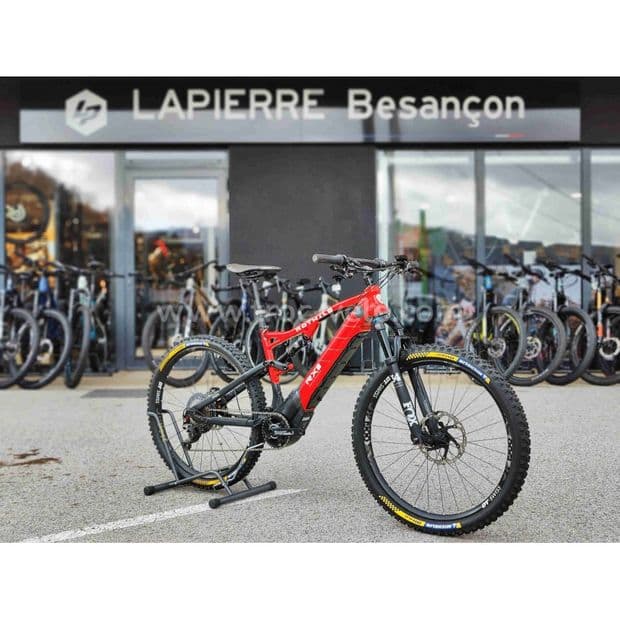

Product Rotwild R.X Trail Pro E-Bike

Model Year 2018

Riding Type Trail

Rider Unisex

Sizes and Geometry

S, M, L, XL View Geometry

Wheel Size 27.5" (650b)

E-Bike Class Class 1: Pedal Assist (Pedelecs)

Motor Brose Drive S

Battery IPU.660.R Carbon, removable

Battery Capacity 648 Wh

Display/Remote Marquardt Remote 4311

Modes 4 modes plus walk assist

Max Speed with Assist 15.6 mph (25 km/h)

Frame Material Aluminum

Frame Material Details High-grade aluminium 6066 T6 alloy and internal cable routing

Rear Travel 140mm

Rear Shock FOX Float DPS EVOL Performance

Fork FOX 34 Float Performance GRIP, Boost

Fork Travel 140mm

Head Tube Diameter Tapered

Headset Rotwild MHS I AR

Handlebar Crankbrothers Cobalt, 740mm (S), 760mm (M-L), 780mm (XL)

Stem Crankbrothers Iodine, 50mm (S), 65mm (M-L), 80mm (XL)

Grips Ergon GD10 Slim

Brakes Shimano XT 8000 with Shimano RT86 Ice-Tech 203mm front/180mm rear rotors

Brake Levers Shimano XT 8000

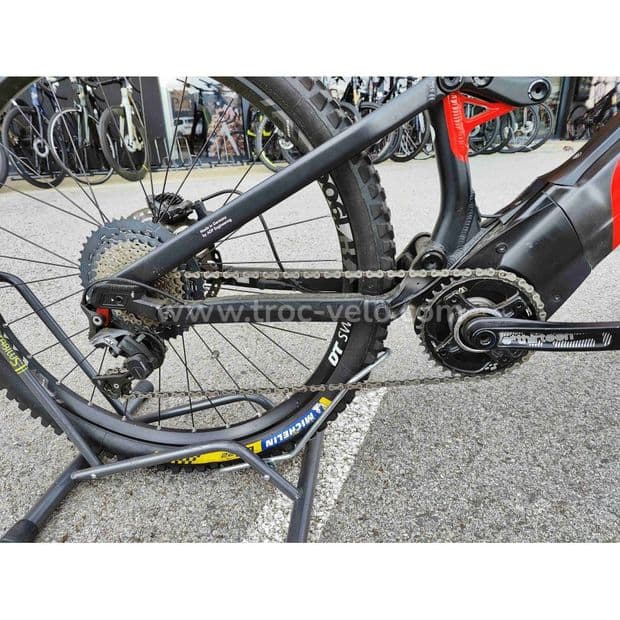

Drivetrain 1x

Shifters Shimano XT I-Spec II, 11-speed

Front Derailleur N/A

Rear Derailleur Shimano XT

Chainguide N/A

Cranks e*thirteen TRS , 165mm length, Boost

Chainrings

Pedals N/A

Chain 11-speed

Cassette Shimano CS-7000, 11-46 tooth, 11-speed

Rims DT Swiss H1900 Spline 30

Hubs DT Swiss H1900, Boost front and rear

Spokes DT Swiss

Tires Schwalbe Nobby Nic, 2.6" Apex Speedgrip, Tubeless Easy

Saddle Ergon SMA30

Seatpost Crankbrothers Highline, 100mm drop (S), 125mm drop (M), 160mm drop (L-XL)

Seatpost Diameter 31.6mm

Seatpost Clamp Quick release

Rear Dropout / Hub Dimensions Boost, 12mm x 148mm

Max. Tire Size 27.5" x 3.0"

Bottle Cage Mounts No

Colors Red/grey/white
